Optogate PB-07

Optogate PB-07

In Stock. Price: $249.00

The PB-07 has a front facing flat IR sensor and mounts vertical on mic stands, (Please be sure that the PB-07 is correct for your application). It is ideal for talk-back mics, lecterns and podiums or where a gooseneck microphone is used, (Adapter may not fit all mic stands). Great for lead and back-up vocals, acoustical instruments in this vertical configuration where you do not want it in-back of the mic such as a PB-05.

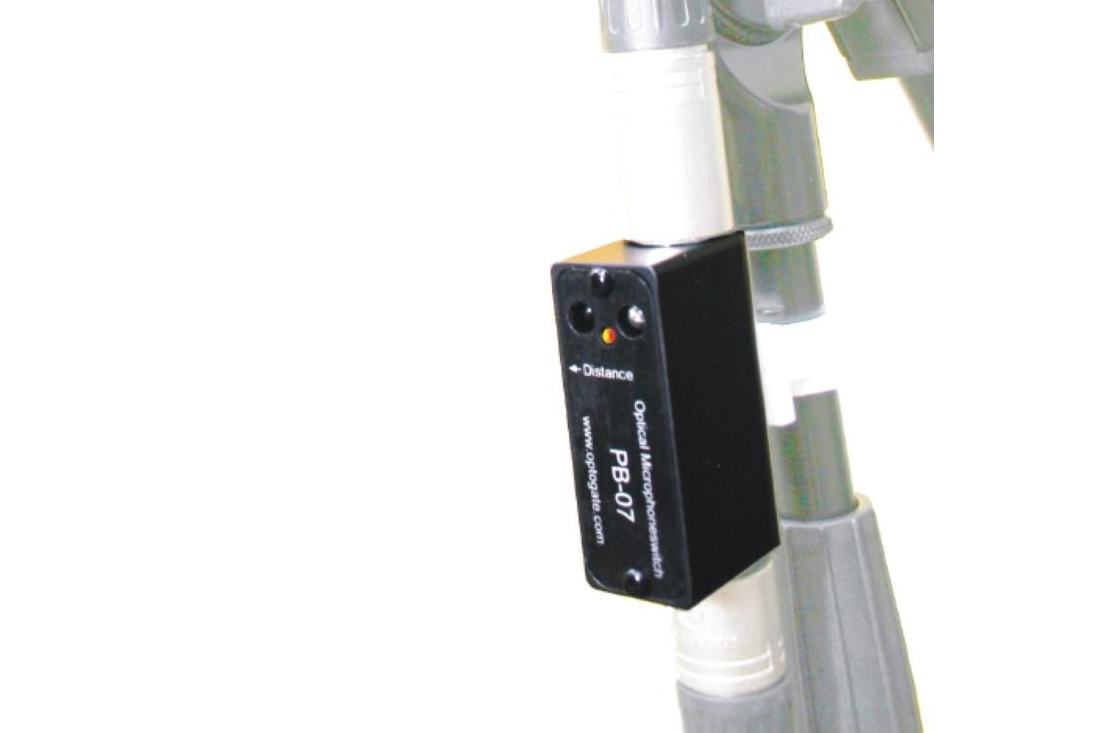

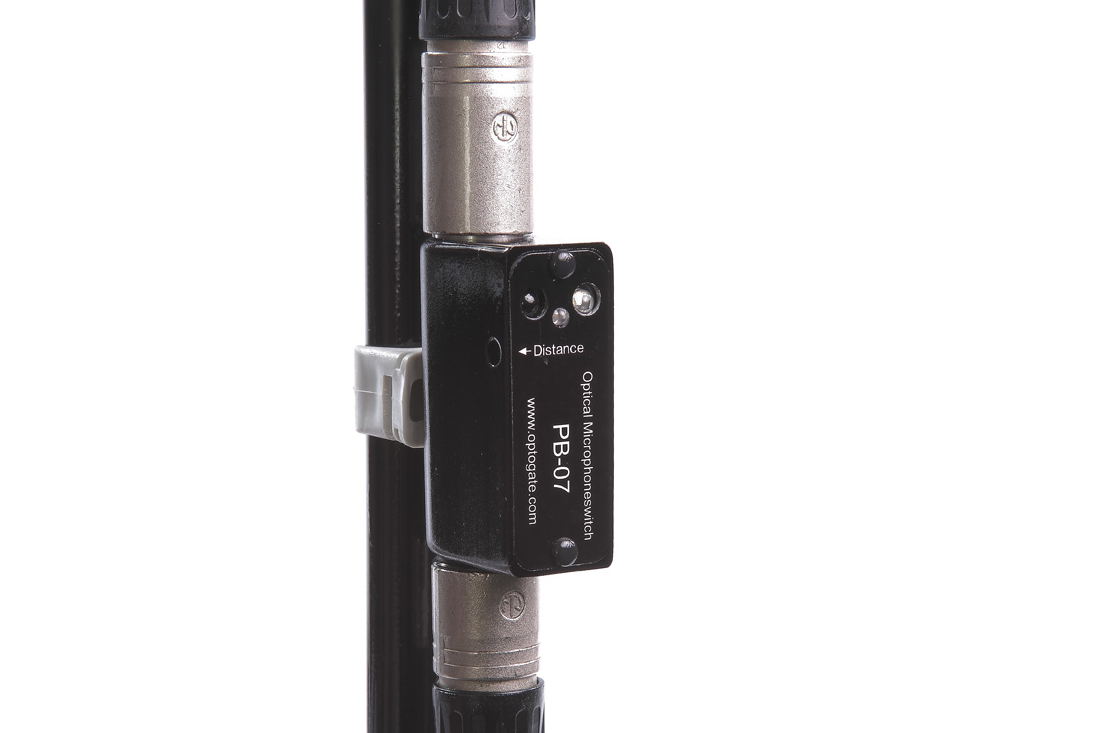

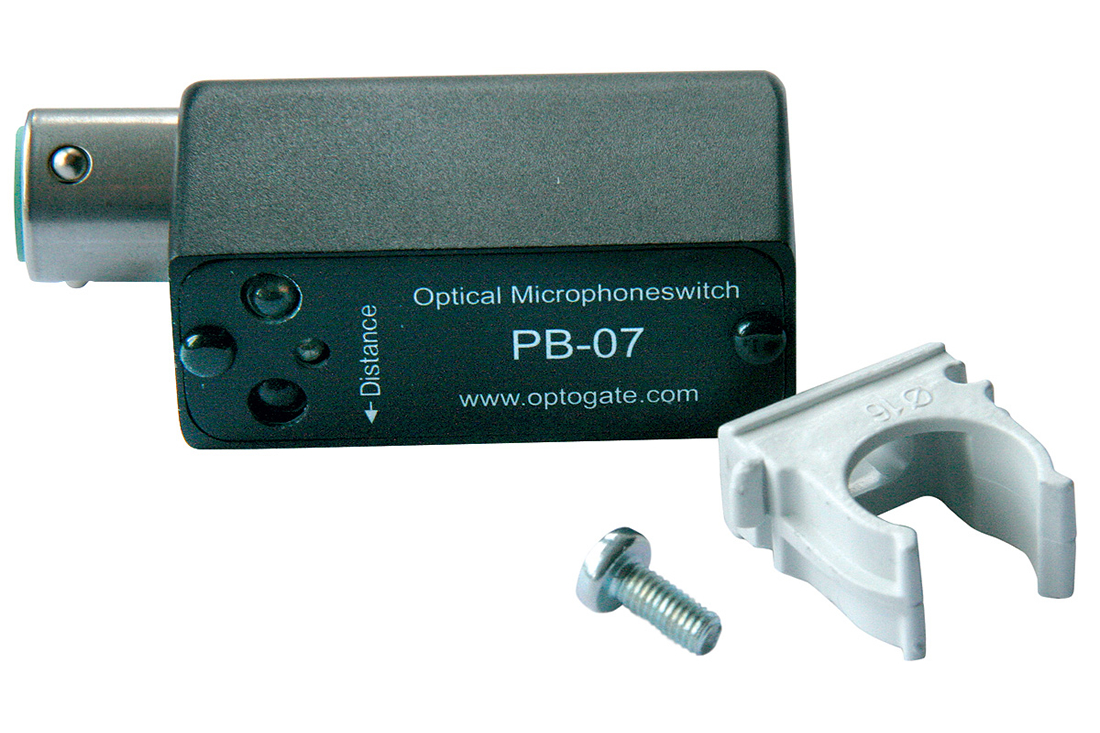

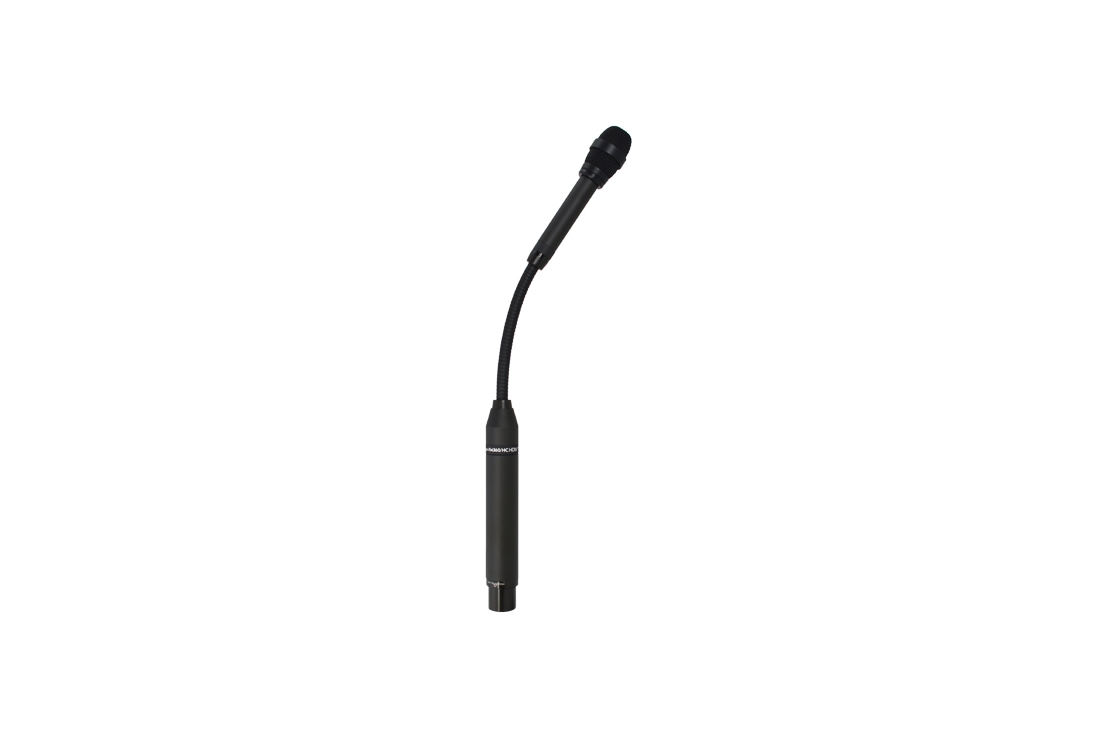

The PB-07 is an automatic microphone gate and is based on the latest optical technology. It is equipped with an infrared sensor. On this model the sensor is on the flat side. Like the other models the PB-07 will switch on the microphone if someone is in front of the mic. The PB-07 is inserted between a microphone and the xlr mic cable or on a gooseneck stand. On the back of the unit is a 4mm threaded hole if you choose to use the supplied plastic clip and screw to mount on the PB-07. You will then clip it to the mic stand and the clip will disappear behind the stand. The PB-07 can be connected to a gooseneck microphone as well.

The PB-07 senses if someone is in front of the microphone and will switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance can be adjusted between 2 inches and 4 feet with the help of the trim pot and a small screwdriver. The performer will see a red status LED indicating that the microphone is switched on. The PB-07 is powered by 48 Volt phantom power from the mixing console. Condenser or Dynamic microphones can be used with the PB-07.

Optogate products are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments, drums, and guitar amps into unused, open microphones on stage. The clarity of the mix and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics!

Shipping & Handling

US Postal Service is used for shipping. Please contact me for any other expedited requests. Purchased items will be shipped to address listed in buyer's PayPal account.

Return Policy

All returns must include all the original packaging. If product is not a warranty issue, buyer pays all shipping.


  • Turns off your mic automatically via infrared signal when you are not using it!
  • No false audio triggers!
  • Set the distance and play!
  • Eliminates unwanted sound from going to your mix, monitors, and P.A.!
  • Excellent for in-ear monitors and loud stage environments!
  • Your sound will be better than EVER before!
  • Your amps will sound better!
  • Your ears and your audiences will thank you!
  • One year warranty!
  • You will not be able to live without these gems once you use them!

Photo Gallery


  Optogate PB-07 Manual

  Adobe Reader Download

Optogate PB-07
Dimensions: 68mm length x 35mm height x 21mm width
Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus)
Case construction: Aircraft-aluminum, black galvanized
Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface)
Angle + / - 10 °
Switching noise: Immeasurable
Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm mic impedance
Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic.
Distortion < 0,05 % at 100mV
Delay time mic on: < 0,2 Sec
Delay time mic off: ca. 1 Sec
Attenuation "mic on": 0 dB
Attenuation "mic off": 42 dB at 150 Ohm mic impedance
Usable mic types: All type of dynamic - and phantom powered mics. up to 10 mA current consumption
Maximum input level: 3 dB (1,1V)
Operating temperature: 0 - 55 Grad Celsius
Background light range: 0 - 20000 Lux daylight und 0 - 12000 Lux electric light bulb
Distance measurement: Active infrared reflection principle with 3 bit code
Power: 24-48 V Phantom power (passes phantom power to the microphone)
Current consumption: ca. 3.7 mA
